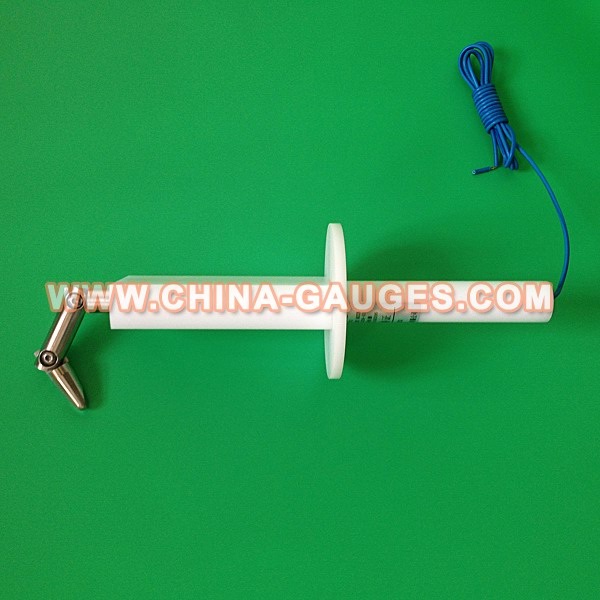

IEC Jointed Test Finger

Article NO.: LX-1202

This is a precision probe made in accordance with all IEC standards. Examples are IEC 61032, 60950, 61010 and 60601; and it is also used for Canadian and USA standards. It features a palm simulator and a restricted joint movement, which simulates the characteristics of the human hand.

This one probe will meet all the different requirements that are in the IEC standards.


Technical Parameters:

1, Knurled Finger Diameter: 12mm

2, Knurled Finger Length : 80mm

3, Baffle Plate Diameter : 50mm

4, Baffle Plate Length : 100mm

5According to : IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1.



1. The joint parts of the test finger cannot touch the live parts or hazardous parts, and the 50mm-20mm Baffle Plate cannot enter.

2. In the test requirements of preventing from approaching to the hazardous parts, the probe B test probe needs to with a 10±3N thrust. The product without force should be used with push-pull dynamometers.

3. In the test of against electric shock, wiring ,configuration and power and indicating device are needed. Turn on the power of the tested sample, and exert the corresponding force to determine whether the grounding line are connected (3 inserts).

4. Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to +10° tolerance.

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.

Note :  The Test Probe is precision stainless steel products, take up and put down slightly when using, and pay attention to maintenance.
