  • UL982 Figure 58.7 PA145 Probe

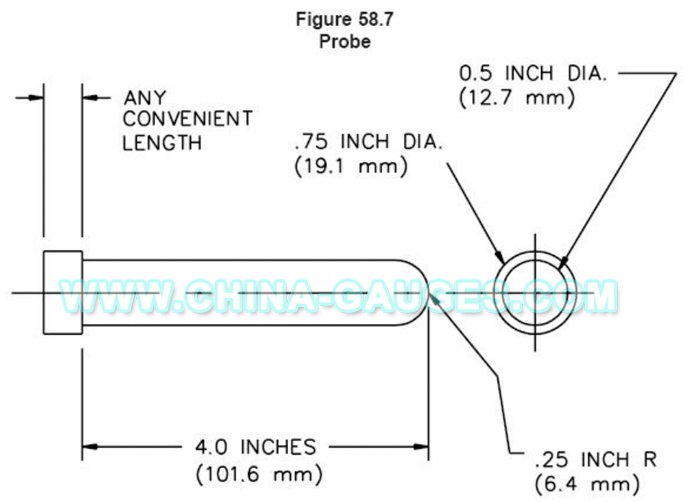

UL982 Figure 58.7 PA145 Probe

The probe is used for the enamel wire, shall be applied to any depth that the opening will permit and shall be rotated or angled before, during, and after insertion through the opening to any position that is necessary to examine the enclosure.

Technical parameters:
Total Length: 101.6mm(4 inch)
Head Diameter: 12.7mm(1/2 inch)
Former Head Radius: 6.4mm(1/4 inch)
Tail Diameter:19.1mm(3/4 inch)
Standard: UL982 Fig 58.7 and UL1278 Fig 8.2(PA140A).



Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


Main Products: Go Not go gauges, IP Tester, Test Probe Kit, Impact Test Equipment, test probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
