500g M-package of EN 62552 (50 * 100 * 100 mm)

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-TP50M

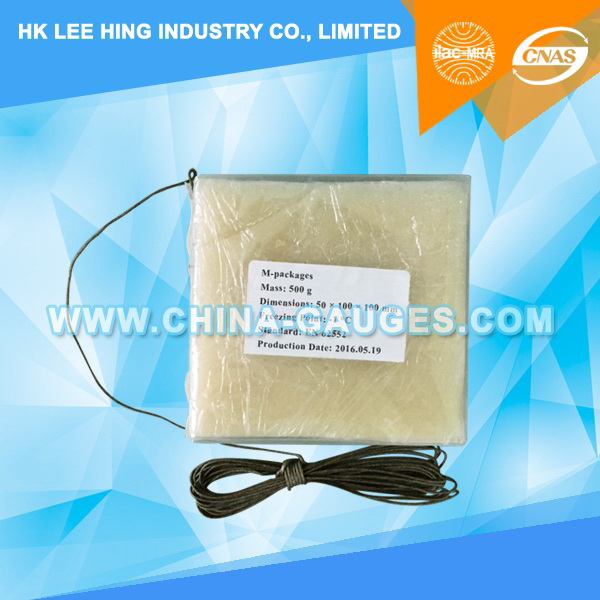

500g M-package of EN 62552 (50 * 100 * 100 mm)

The Freezing Test Package for refrigerator cooling test is in accordance with the requirements of EN 62552 8.5 standard. The test package is placed in the frozen food storage compartment and chill compartment's performance test, or in a refrigerator freezer to test the freezing capability test, to simulate the freezing load capacity of frozen food.


Mass: 500 g


Dimensions: 50 × 100 × 100 mm


Freezing Point: -1 °C


Standard: EN 62552


Features:
1. The freezing point of the test package is -1℃ (Its thermal performance is equivalent to lean beef);
2. Packaging material is a thin layer of plastic, or with appropriate materials which can do medium vapor exchange with the environment, immediately seal the packaging material after filling;
3. When measured in chill compartment, must use the -5℃ test package;
4. You cannot use in test of testing freezing capacity and load temperature rise time;
5. M package means the 500g test package, it equipped with a thermocouple in the geometric center to measure the temperature. The thermocouple contacts the package directly.


Note:
1. Don't store it so long time on normal temperature, note the deformation;
2. This freezing load test package is afraid of pressure, fireproofing, waterproof, handle with care;
3. This freezing test package need to periodical inspection, no visible Holes or slits, When you find the test package exceeds the above-mentioned error, it need to be change.



M package with thermocouple wire or embedded copper pipe,  -1℃ / -5℃

Size (mm)

Weight (g)

Size Tolerance

Weight Tolerance

50 × 100 × 100

500

±2mm

±2%
