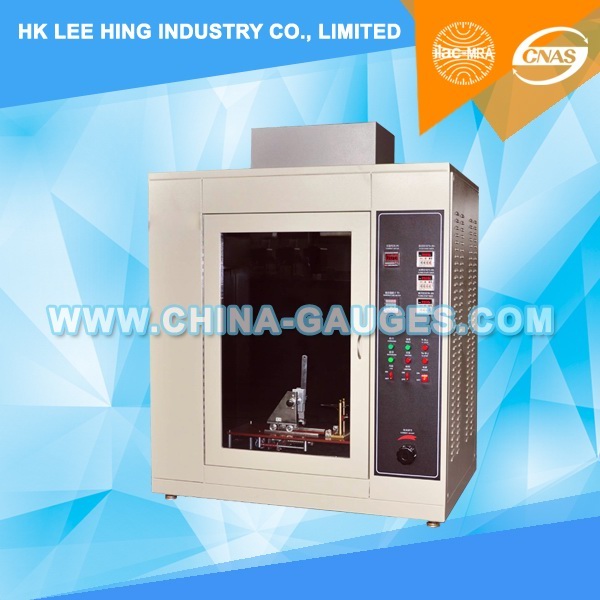

Glow Wire Tester

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-GW17


Basic introduction:
1. Accord with IEC60695-2-10, UL746A.
2. Using electricity heating regulation material (Ni80 / Cr20) of resistanse wire (Φ 4 mm Ni-Cr alloy wire) to 0°C~ 1000°C in 1 min,then with 1.0 N vertically burn it 30s,measure the fire risk by  product light-off or holde burning time ,also test light-off degree, light-off temperature (GWIT), flammability and combustible index (GWFI).
3. Suitable for lighting equipment, low voltage electric appliance,electrician instruments and material flammability testing, such as electrical and electronic products.

Specifications:

Model

LX-GW171

LX-GW172

Controller

Touch screen controller

Button controller

Glow wire

diameter 4mm±0.04mmNi/Cr(80/20), standard

Temperature range

500-1000°C ±2°C continus adjustable

Thermocouple

diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~ 1100°C

Searing Time

30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable)

Light-off Time

0-999.9 s ± 0.1 s, automatic recording, manual timeout

Fireouttime

0-999.9 s ± 0.1 s, automatic recording, manual timeout

Ironing into depth

7mm ± 0.5 mm

Sample pressure

1N ± 0.2 N

Test speed

18±3mm/s

Test background

black background

Test process

automatic control, independent convulsions

Chamber

≥0.5m

Size

W1100mm×D700mm×H1300mm, exhaust hole Ø100mm can customize

Control

Using single chip microcomputer + touch screen control

Consult standard

IEC60695-2-10:2000,UL746A

Power Supply

800VA ,220V, 48-60Hz
