Lamp Cap Gauge

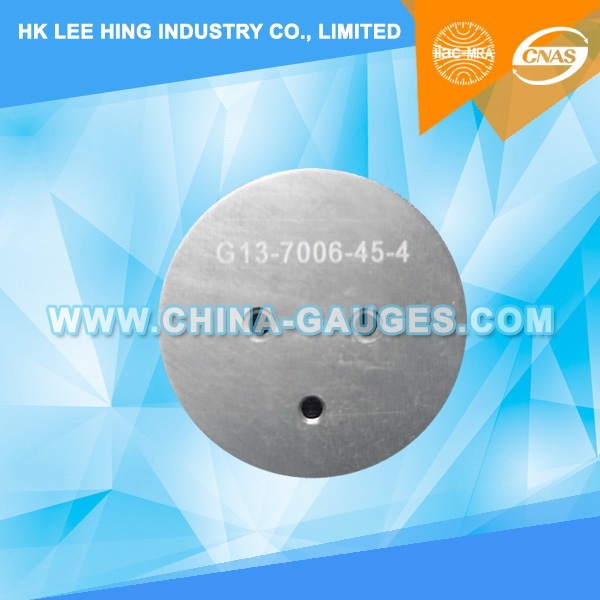

  • 7006-45-4 G13 Go Gauge for Bi-Pin Cap on Finished Lamp
7006-45-4 G13 Go Gauge for Bi-Pin Cap on Finished Lamp

7006-45-4 G13 Go Gauge for Bi-Pin Cap on Finished Lamp

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • 7006-45-4
  • Made in China
  • Product description: G13 Go Gauge for Bi-Pin Cap on Finished Lamp, 7006-45-4. According to standard IEC 60061-3

G13 go gauge for Bi-Pin Cap on Finished Lamp, 7006-45-4


To check dimensions E max., F min., F max. and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G13 on finished lamps.


The pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact.

In this position the ends of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y.

Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.

G13 Go Gauge for Bi-Pin Cap on Finished Lamp
