IP Testing Equipment

  • IPX7 Water Immersion Resistance Test Cabinet

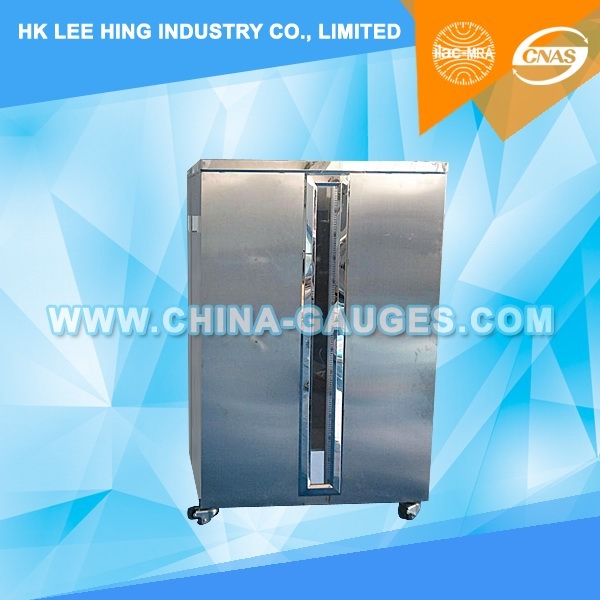

IPX7 Water Immersion Resistance Test Cabinet

IPX7 Water Immersion Resistance Test Cabinet

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • LX-IPX700D
  • Made in China
  • Product description: Water immersion resistance test cabinet/IPX7 water proof testing device is used to test the sealing and water-proof property for external lighting, signal device, vehicle lamps shell protection. It pr
  • INQUIRY


Test standard:

IPX7 Water Immersion Resistance Test Cabinet is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX1/2.


Application:

IPX7 water proof test machine is used to test the sealing and water-proof property for external lighting, signal device, vehicle lamps shell protection. It provides a realistic water spray simulation condition of electronic products and components.


Features:

1. Leaching tank is a double-layer structure, the inner layer of the SUS304# stainless steel plate overall accuracy sub arc welding, ensure the long time use is not rust water, Intermediate with 40 square steel reinforcement, make the leaching tank is used for a long time won't because the stress and deformation, outer layer by the hairline stainless steel plate welding, using mirror stainless steel plate edge, Leaching tank appearance without solder joints on the overall appearance generous.

2. In and out of the water pipe below the water tank, hidden in a stainless steel base, the base has two external water valve switch, a inlet valve, a drain valve.

3. Stainless steel ruler display water level.

4. The observation window is made of 15mm toughened glass, and the test case of the test sample can be observed. Strong and durable for a long time use is not leaking.

5. Stainless steel frame with casters truck and foot cups for easy mobility and fixed.


Specifications:

Device parameters

Item No.

LX-IPX700D

Internal Dimension

800*500*1500mm

External Dimension

880*850*1650mm

Test maximum depth

1.5m

Water level adjustment method

Manual adjustment

Water level display

Stainless steel ruler visually

Water tank material

SUS304
