Socket Protective Test Needle with 1N of IEC60884

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-1N

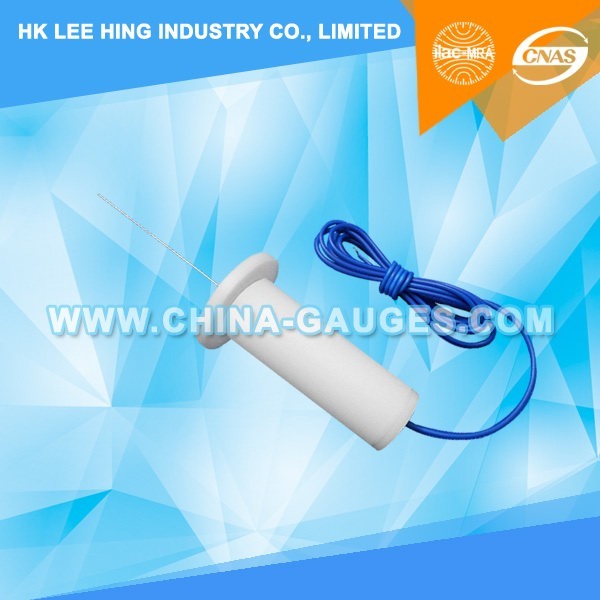

CEI IEC 60884-1 Figure 10 Socket-outlets Protection Test Probe with 1N Force



Basic Introduction:

1. According to : IEC 60884 Fig 10

2. The test probe is used for household and similar electrical appliances of necessary protection of against electric shock test apparatus; Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.


Technical Parameters:
Gauge: 3mm*1mm(wide * thick);
Diameter: φ1.0mm
Test probe length: 80mm
Force: 1N
Material: The handle is made of nylon, tip is made of hardened steel



To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its axis:
the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Figure 10 – Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection

IEC 60884 Figure 10.jpg
