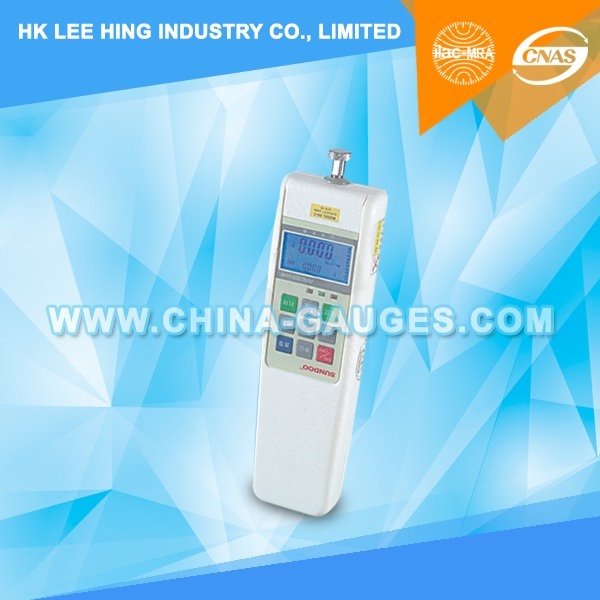

100N Push and Pull Force Meter

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: SH-100


Brief Introduction:

100N Push and Pull Force Meter is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.


Product Trait:

1.Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);

2.Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

3.Memory function: Memory 10 testing data, and calculate the average;

4.Units conversion: Converting three units(N, kgf, lbf) automatically;

5.LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;

6.Automatic power off function: Power off time (1-60 minutes) can be set by user;

7.RS-232Coutput: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing;

8.Patent number: ZL200620013022.2,ZL200610072362.7;

Model

SH-100

Capacity

100N

Load Resolution

0.05N

Sensor conformation

Sensor Inside

Measuring range

10%~100% FS

Inaccuracy

±0.5%

Power

8.4V 12V * 7 Nickel hydride battery

Charging time

about 4 hours

Operating time

about 40 hours

Waiting time

3 month

Battery life

300 of times

Adaptor

Input: AC 220V 50Hz;
Output: DC 12V 300mA;

Weight

about0.7kg
