IP Testing Equipment

  • IPX3-4 Oscillating Tube Test Device

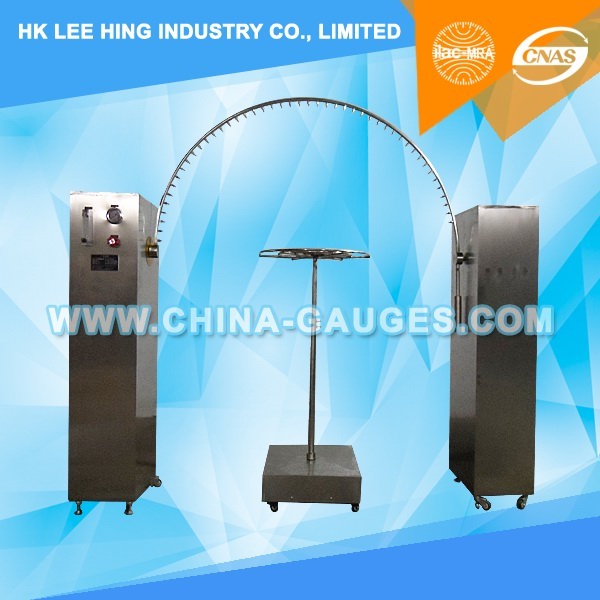

IPX3-4 Oscillating Tube Test Device

IPX3-4 Oscillating Tube Test Device

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • LX-IPX34R
  • Made in China
  • Product description: The ipx3/4 waterproof test chamber is strictly designed according to IEC60529. It' s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.
  • INQUIRY


Test standard:

IPX3/4 Oscillating Tube Tester is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX3/4.



Application:

The main role of IPX3/4 Oscillating Tube Tester is to test products storage, transport and use in the rain climate environment. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products.

After the test, to determine the performance of the product through the identification is able to meet the requirements, in order for use of the product design, improvement, identification and factory inspection.



Features:

1. Two column type structure, easy to install and move.


2. The equipment is made of high quality Aluminum Alloy model and SUS304 stainless steel plate, to ensure the long time use does not rust.


3. Turntable electrical part fully sealed to prevent water leakage.


4. Water tank automatic control water by the float valve, pump selection of brands stainless steel self-priming pump, water tank made of high quality SUS304 stainless steel welded, and the waterway made of high quality SUS304 stainless steel and PP-R material to prevent rusting of pipeline, and affect the test results.


5. Column on the left panel placed tube installed flowmeter, pressure gauge and pressure regulator, flow rate and pressure can be visually displayed and adjusted.


6. High precision filter can effectively filter impurities in tap water, to prevent clogging of the needle tip, while the filter is installed on the outside of the filter cartridge can be easily replaced.


7. The turntable uses the speed regulating motor, stepless adjustable speed in the standard scope, and can control the forward and reverse rotation(suitable for electric test sample).


8. The control system consists 7-inch touch screen and Panasonic PLC as the core and brands consisting of a stepping motor, put the tube speed, angle precision adjustable.


9. Main low-voltage electrical components are all made of LG and OMRON and Julixing other brands. Wiring process conform to the requirements of the standard, panel layout is reasonable, the connection is firm, marked clearly, ensure the quality of the products.


10. Samples power-off time can be set, power 0-999M, off 0-999M.


11. Test time can be set 0-999Madjustable, one key to start, automatic shutdown, simple and intelligent.


Specifications:

Item No.

LX-IPX800R

LX-IPX1000R

LX-IPX1200R

LX-IPX1400R

LX-IPX1600R

Equipment Dimensions (mm)

L2400*D1800*H2000

L2800*D2200*H2200

L3200*D2400*H2400

L3600*D2800*H2600

L4000*D3200*H2800

Swing Tube Radius (mm)

R800 (can add R600,R400)

R1000 (can add R800, R600, R400)

R1200 (can add R1000,R800, R600,R400)

R1400 (can add R1200,R1000,R800,R600, R400)

R1600 (can add R1400, R1200,R1000,R800,R600, R400)

Flow (L/mm)

0.5 ~ 10.0 (Manually adjustable)

Nozzle Diameter (mm)

Φ0.4

Swing Tube Inner Size(mm)

15

Turntable Diameter (mm)

Φ600

Φ600

Φ800

Φ1000

Φ1200

Turntable TableUp-downAdjustmentRange(mm)

950 ~ 1550

1000 ~ 1700

1000 ~ 1700

1000 ~ 1700

1200 ~ 2000

Turntable Table Max. Load (kg)

50

50

100

100

100

Turntable Speed

1 ~ 5 r/min

Swing Tube Angle

±60°, 180° (Arbitrary angle adjustable)

Swing Tube Speed

120°for 4S, 360°for 12S

Box Material

SUS304 stainless steel

Turntable Material

SUS304 stainless steel

Protection Function

no water, leakage, and short circuit

Power Supply

220V

Power

1KW
